Month: June 2017

Years ago, while I was screening Table of Content alerts for interesting stuff (I’ve been doing this once a week for years: Friday, I’m in love with newly published science), my eye was caught by one of those high-impact, very technical human genetics papers where they find a new gene underlying some very serious disease. It turned out that the newly identified causal variant accounted for 0.6% of genetic variance. Wow. Then I said to myself: hey, what do you know about how the field of disease genetics works? Even a 0.6% effect can be important, if it can save a life.

And then came the Boyle et al. paper, few days ago, on the ‘omnigenic’ genetic structure of complex traits.The paper shows that the genome is not even scattered with, it is smeared with loci controlling complex traits. Many of those loci have very small effects, and could only be detected in studies with very large sample sizes. There is nothing strange to this: the more intensely you chart the territory, the more detailed the map, and the smaller the features that appear in the map.

The vast lists of genes associated to a given trait are not particularly enriched in some functional categories; probably, many genes have an impact on many characters (they are pleiotropic) and are involved in many partially overlapping regulation networks, as suggested by the fact that many causal variants happen to be in regulatory regions.

Indirectly, this also suggests that candidate-gene strategies may have a problem (you’ll certainly find a particular category of genes to be associated with the trait: all categories are…), as well as looking for relevant variants only in coding regions (well, we all knew this, did we not?).

But let us go back under the canopy.

In trees, it is quite common that traits diverge across populations (forest scientists call them “provenances”: the word is the heritage of the strategy of planting multiple populations together to assay their performances), but gene frequencies do not. This phenomenon is well described by Kremer and Le Corre (2003, 2012 (1), 2012 (2)) and suggests that adaptation (and therefore the control of underlying adaptive traits) is highly polygenic. There you are. One can expect that, given enough power, association studies in trees will end up detecting very large numbers of small signals, too.

There are very few GWAS’s in trees (Fahrenkrog et al. (2016), for example, has  about 18,000 genes mapped from a population of about 400 trees. I can hear the average human (or Arabidopsis) geneticist sneering).
One good reason is that to perform a GWAS you first need a G[enome], and there are not so many tree genome sequences so far. Other reasons may be less clear, except for the argument that GWAS is still relatively expensive and forestry is not the research field that attracts the largest funds. Forest GWAS studies in which millions of trees are screened are even rarer (read: non-existent). Plus, if you are looking for weak effects, you must be very careful about how you pick your sample: even slight, undetected differences in the ontogeny (developmental path: how the trees have grown) or environmental conditions can have a larger effect than weak genetic differences, which will be drowned in the background noise.

Yet, there is hope.

From the evolutionary point of view, small effects may be more relevant than when trying to predict susceptibility to a disease. First because, as stated above, they can have a cumulative effect on fitness (even without accounting for interactions, which could amplify their effects); and secondly, because selection is a powerful force (we have commented on this before, haven’t we?) and can lead to major allele and phenotype frequency changes over relatively short time scales. As an excercise, you can compute the time to fixation for an advantageous allele starting at an arbitrary frequency, using the equations in Kimura and Ohta (1969) (NB: compare to time to fixation for a neutral allele in the same configuration to check what the effect of selection really is). You can play around with the formula using this simple code that I have written in R:

#Calculations from Equations (17) and (14) in:
#Kimura M, Ohta T. 1969.
#The Average Number of Generations until Fixation of a Mutant Gene in a Finite Population.
#Genetics 61: 763–71.
#
#
#sel coefficient
s<-6e-3
#effective size
Ne<-10000
#Ne * s = S
S<-Ne * s
#starting frequency of positively selected allele
p<-0.005
#
# Equation (17): fixation of selected allele
#function to integrate for term J(1)
J1der<-function(csi)
{
(exp(2*S*csi)-1)*(exp(-2*S*csi)-exp(-2*S)) / (csi*(1-csi))
}
#function to integrate for term J(2)
J2der<-function(csi)
{
((exp(2*S*csi)-1)*(1-exp(-2*S*csi))) / (csi*(1-csi))
}
#coefficient for the integrals J(1), J(2)
Jcoef<- 2 / (s*(1-exp(-2*S)))
#u(P) function
uP<-(1 – exp(-2*S*p)) / (1 – exp(-2*S))
#average time to fixation under selection
t1p<- Jcoef * integrate(J1der, lower = p, upper = 1)$value + ((1-uP)/uP) * Jcoef * integrate(J2der, lower = 0 , upper = p)$value
#
# Equation (14): fixation of a neutral allele
#average time to fixation (neutral)
t1pNeutr<- (-1/p)*(4*Ne*(1-p)*log(1-p))

Moreover, part of the ‘omnigenic’ effect is caused by linkage disequilibrium, which extends over much larger spans in humans than in most tree species. In trees, it is less likely that a variant correlated to a causal SNP will also appear as a causal SNP.

Another consideration: for reasons of power and efficiency, many rare variants are eliminated from GWAS studies through the cruel MAF (minimum alelle frequency): anything with a frequency under a certain threshold is usually thrown out. This makes sense, because some of them may be artefacts, and anyway statistical power at those loci will be low. But what if they have a large effect? In natural tree populations, rare variants with large effects may be just waiting for selection to pick them up. I, for sure, do not throw them away!

And finally: first things first. Let us find major effects, if they are there (some have already started: see Sam Yeaman’s et al. Science paper as a brilliant example), and then we’ll scratch our heads with minor ones.

Walk down a wild forest in spring (or during the rainy season, if you are walking down a tropical forest). You’ll walk on a carpet of tree seedlings, growing from the seeds dispersed by the trees in the canopy above your head.

It is a spectacular view, that gives you the feeling of how powerful forest dynamics are. It is also amazing to see all those tiny cubs, sitting at the feet of their enormous mothers.

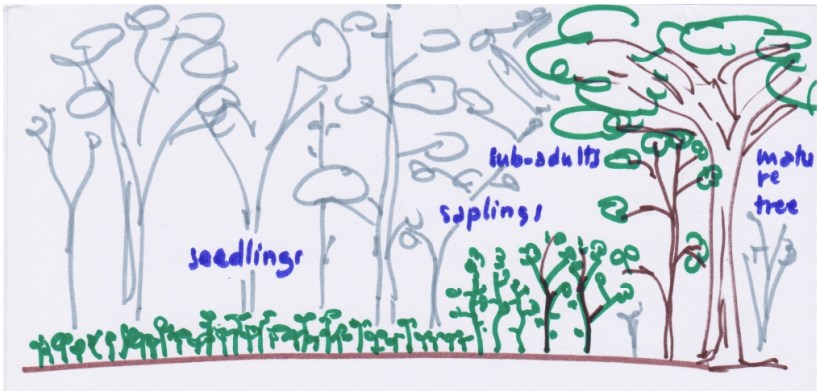

But there is also a tragic side to this. Look better: there are much fewer saplings, even fewer sub-adults. No matter the tree species, most of those youngsters will die soon and suddenly, in a massacre that makes WWI trench warfare pale in comparison. The pyramid of ages is very steep.

What does this slaughter tell us about how forest ecosystems work? Jean-Pierre Pascal (‘JPP’), a brilliant and witty, now retired, CNRS (France) forest ecologist, used to say that it was useless to study all those naturally regenerating seedlings, which will basically all die.

And he was right: from the forest manager’s point of view, interesting things start when trees reach ’10 cm d.b.h.’ (for the outsider: ‘d.b.h.’ is ‘diameter at breast height’, that is, at 130 cm from the ground (for a short guy like me)). And it is so exactly because only few (wild) stems reach that size, hence it is pointless to take care of all those which don’t.

A tree can live and be fertile for several decades or even a few centuries. Every year or every few years, a dominant tree produces hundreds or thousands of seeds. If one imagines a ‘stable’ forest stand, one that does not expand or retreat (a very unlikely case indeed*), then each tree will be replaced by one tree over the course of its life. In other terms: of all those hundreds of thousands of seeds produced by one tree, how many, on average, will be left after a tree generation? ONE.
This is plainly insane. You can call it an extreme r strategy – if you like understatements.

What may be going on there, from the population-genetic point of view? Seedlings die for a variety of reasons: they may be damaged by herbivores, they may find it hard to tap into soil resources, undergo competition from other seedlings, be attacked by fungi – the list of good reasons for a seedling to die is endless. If all this is purely random, then well, there is not much work to do for the evolutionary geneticist. But those populations are large, and we know that selection for survival can be particularly effective in large populations. So yes, selection can happen there, and the seedling may even be the essential developmental stage at which that kind of selection happens.

In an elegant modelling exercise, Oddou-Muratorio and Davi have shown that, actually, selection for survival occurs at young stages, while older cohorts undergo principally fertility selection (logically: almost nobody is left, so almost nobody can die). In the case of the beautifully named tropical tree Symphonia globulifera, we have found (the article is in preparation) that, in controlled experiments involving reciprocal transplants between habitats, ecotype differences in growth, germination and survival can be identified at ages 1-5 years. The TIPTREE project is seeking signatures of selection on short timescales (within one generation) in seedlings, while the GENTREE project is establishing a monster-size seedling survival experiment with two trees, Scots pine and silver birch. In a very elegant experiment, Antonie Kremer (INRA – BIOGECO) is using diachronic approaches to study seedling adaptation. In a classic of tree population genetics, Alistair Jump et al. have shown that allele frequencies of current adults have been influenced by climate at establishment time.

For decades, forest science has looked at properties of seedlings and saplings mostly hoping that they could help predict characters in adults. This is a much needed strategy if one wants to make forest management choices in production systems. On the contrary, the study of seedling properties in themselves may be the key for the management of wild forests under climate change. Stay tuned for more information about this, surprises may come soon.

* no, there are no ‘stable’ forest stands. Forests themselves keep expanding and contracting, even in the absence of human intervention, and within forests, populations can undergo their own cycles of expansion and contraction, over long time spans.



Despite the title, I do not think the Darwinian Modern synthesis (as defined by Julian Huxley in 1942) is some evil empire (titles only serve the purpose of catching your attention, right?). I do not think, either, that it is threatened by some insurgent group on a remote planet. Actually, I think that it is very healthy and solid.

Yet, every now and then some press release informs us that somebody has made some discovery that challenges Darwin’s ideas (some other people, meanwhile, at about the same rate, confirm Einstein’s relativity theory; the reason why it is so exciting when somebody challenges the one theory, and at the same time it is exciting when someone confirms the other, escapes me entirely).

Hence an article by three heavyweight figures of evolutionary and population genetics (D Charlesworth, NH Barton, B Charlesworth (2017) The sources of adaptive variation. Proc Royal Soc B 284: 20162864). The three Modern synthesis fighters probe the solidity of proof in favour of mechanisms that would fundamentally question the Modern synthesis. Are they relevant? common? do they work differently – evoluton-wise – than classical sequence variation? The paper is a review of the evidence supporting the generality and impact of several non-Mendelian inheritance mechanisms, and the Authors generally conclude that they are limited to a small number of particular cases or they have little impact on trait variation. Nothing is left standing after the paper’s judgement: not the role of epigenetic* alleles in the determination of traits, not the transmissibility of epigenetic marks; and not, of course, the possibility of directed mutagenesis. All such effects are dismissed as poorly supported or of minor consequence. Case closed: “no radical revision of our understanding of the mechanism of adaptive variation is needed”, as the last sentence of the summary says.

In summary, what should we say about epigenetics, Lamarck and all the rest? First, let me tell you: Haldane and Huxley are not Darwin and Wallace. They added something fundamental to Darwin’s brilliantly right, but incomplete, idea. The Modern synthesis made a fundamental act of integration of genetic heredity, population dynamics and evolution by natural selection. Is it complete, finished? certainly not. Is adding some new element (say, epigenetic inheritance, in spite of our trio’s skepticism) equivalent to disproving the Modern synthesis, or even Darwin – and going back to Lamarck? In other terms, should incompleteness of a more advanced theory force us to fall back to the previous one, even more incomplete and erroneous?
And then again, speaking precisely of epigenetic inheritance: Darwin did not have any clue of how inheritance of traits worked, and yet his theory was powerfully right. Now, why should epigenetics – a variation on the theme of Mendelism and a ripple in the ocean of solid facts supporting the Modern synthesis – make a century of population and evolutionary genetics wrong?

But let me be absolutely clear: I do not overlook the importance of epigenetic inheritance in the determination of traits and fitness. After all, if I am – say – a tree, my seeds will likely fall (with some notable exception) all around me, and they will probably undergo the same environmental conditions as myself. It is probably fitness-wise useful to provide my seeds with the same gene expression setup as I have, because it is likely to be the one that allowed me to successfully reproduce in the place where I live – and so it may help my progeny to sort it out. This hypothesis requires solid proof of course, but I would not dismiss it too quickly. To me, epigenetic inheritance could be viewed as a clever way to transmit gene regulation (not genetic variation) down to the next generation, and this may be adaptive, the same way phenotypic plasticity can be adaptive.

On the contrary, one may also say: how can this stuff be relevant at all? After all, if it were so important, some important deviation of observation from theory should have appeared earlier in the history of modern genetics. This is certainly a sensible argument, except for two points: (a) we are very good at ignoring small but non-zero deviations and (b) as a professor of genetics in Milan, Italy used to say a long time ago: “there can be no genetics (as a research field) without genetic variation“. In other terms, we can only research effects that lead to the segregation of traits, and we are unable by construction to spot mechanisms that lead to uniformity. Epigenetic inheritance seems to produce equal patterns in all of an individual’s progeny, and so sits right in the middle of genetics’ blind spot.

So, in the end, by what means could new discoveries really hurt the Modern synthesis? I’d say that they should prove that new things escape the fundamental forces of evolution. If they exist, vary, and evolve in spite of selection, drift, migration, recombination, and non-random mating, then we have a problem.

My guess is this is unlikely to happen, and that we will discover that the reality of biological adaptation is more beautifully complex than we thought. If values of traits as determined by epigenetic inheritance – or the mechanism itself of epigenetic inheritance – can be proven to undergo selection for increased fitness, then this will be yet another nice addition of the Modern synthesis.

*nowadays the ‘epigenetic’ buzzword is used by some people to describe, well, gene regulation. We should not indulge in such lack of precision: good old regulation, operated by transcription factors and other proteins and RNAs and cued by the intracellular signalling of environmental factors, has nothing to do with epigenetic inheritance.
